Lexus IS-F CCS-R Races at Pikes Peak International Hill Climb in the USA

Lexus has entered the IS-F CCS-R racer in its first ever Pikes Peak International Hill Climb in the U.S., which starts in July.

First shown at the 2011 Tokyo Auto Salon, the racer has taken part in several race events before, including the VLN 10 at the Nürburgring.

The IS-F CCS-R is motivated by the same 5.0-litre V8 engine as the road going IS-F, delivering 416hp (422PS/310kW) of power and 371 lb.-ft (505Nm) of torque. It is also mated to the same 8-speed automatic gearbox as the IS-F.

However, the racing model has undergone a strict dieting regime and tips the scales at just 1,396kg (3,087 lbs), compared to the IS-F’s comparatively porky 1,700kg (3,748 lbs).

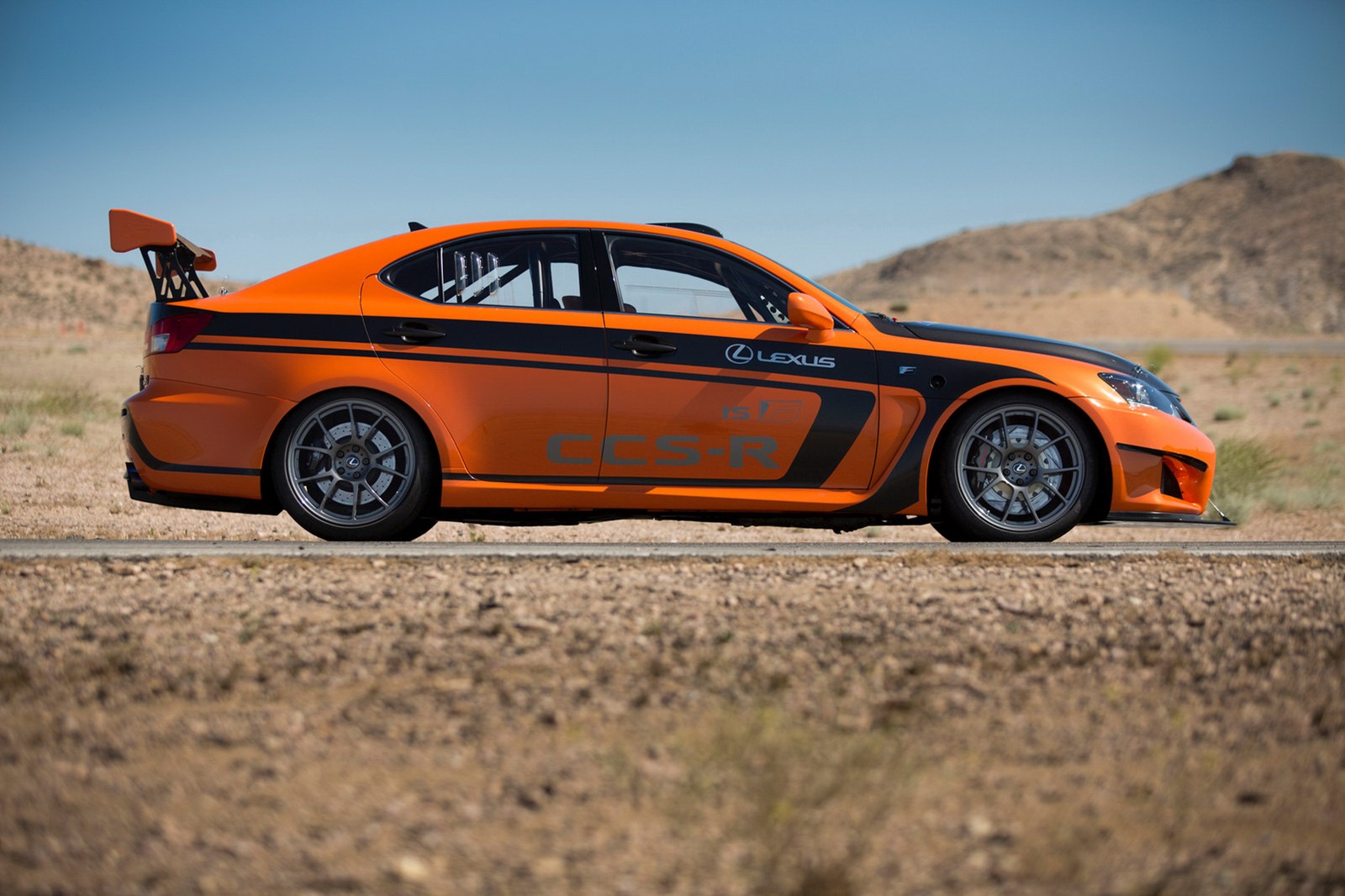

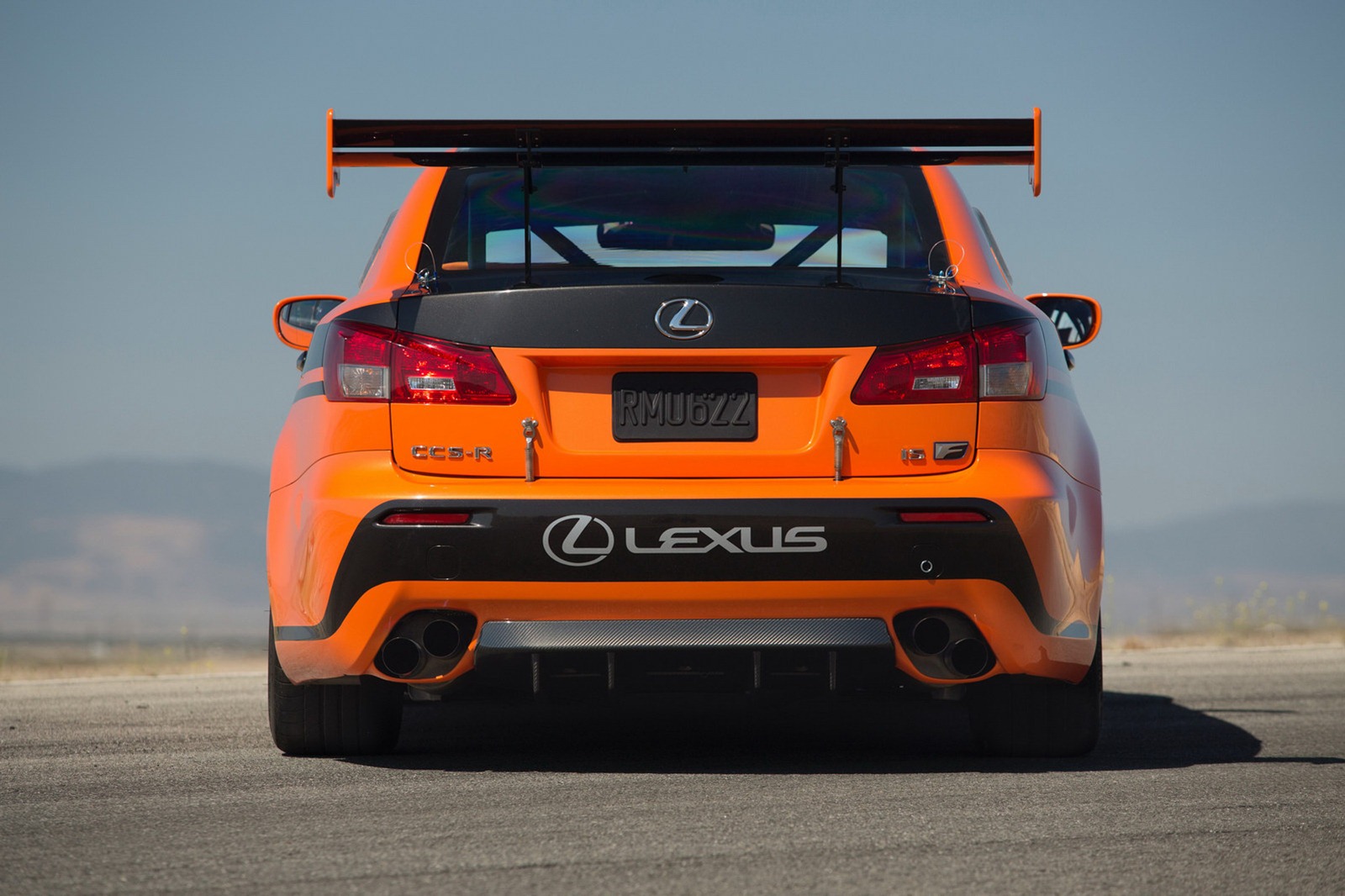

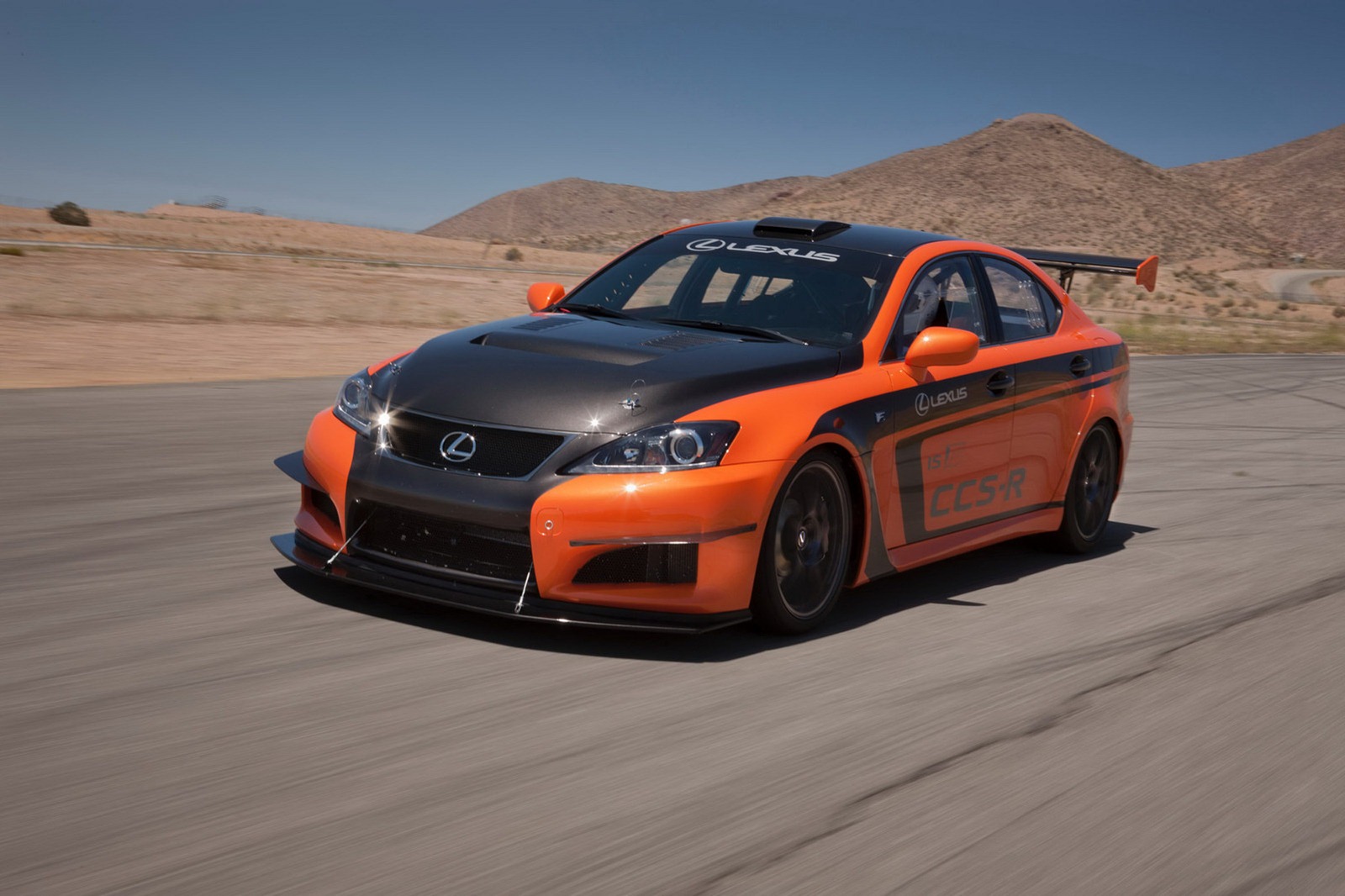

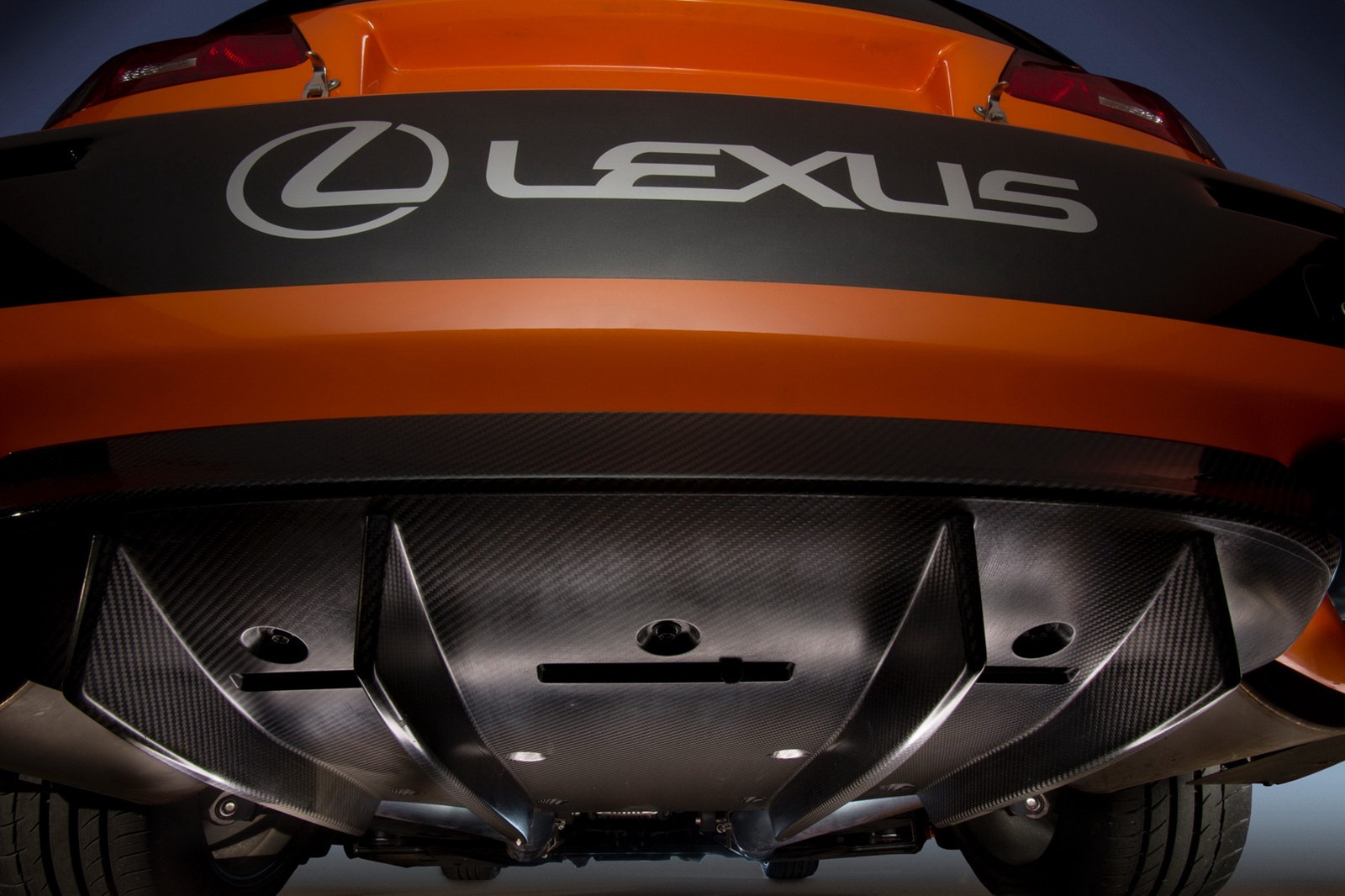

Check out the IS-F CCS-R in action at previous races in the video below, as well as photos of the car that will compete in the Pikes Peak Hill Climb.

LEXUS IS F CCS-R TECHNICAL SPECIFICATIONS

EXTERIOR DIMENSIONS

Wheelbase 2730mm
Overall length 4759mm
Overall width 1815mm
Overall height 1384mm

WEIGHT

Curb weight 1400kg (314kg less than standard road car)

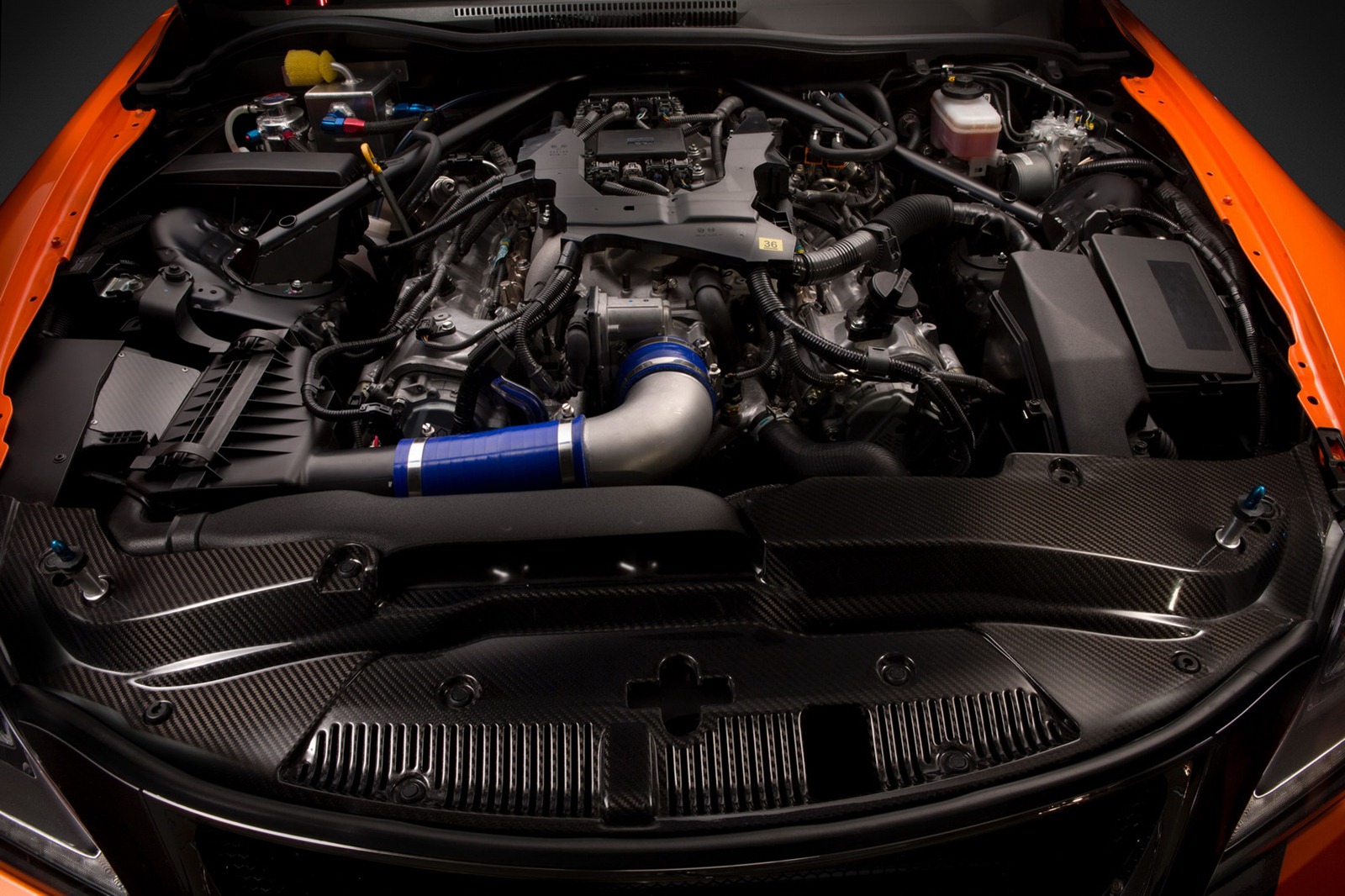

ENGINE

Designation 2UR-GSE
Displacement 5.0-litre
Power 311kW @ 6,600rpm
Torque 505Nm @ 5,200rpm
Fuel system SFI D-4 direct-to-cylinder injection with secondary port injectors

DRIVETRAIN

Layout Front engine, rear-wheel drive system
Transmission 8-speed Sport Direct Shift automatic with paddle shift and manual mode

EXTERIOR

• Orange mica exterior paint
• Reinforced monocoque (with roll cage)
• Carbon fibre hood, door handles, front fender, front spoiler, front canard, rear spoiler, ventilator
• Polycarbonate windows
• Lightweight door

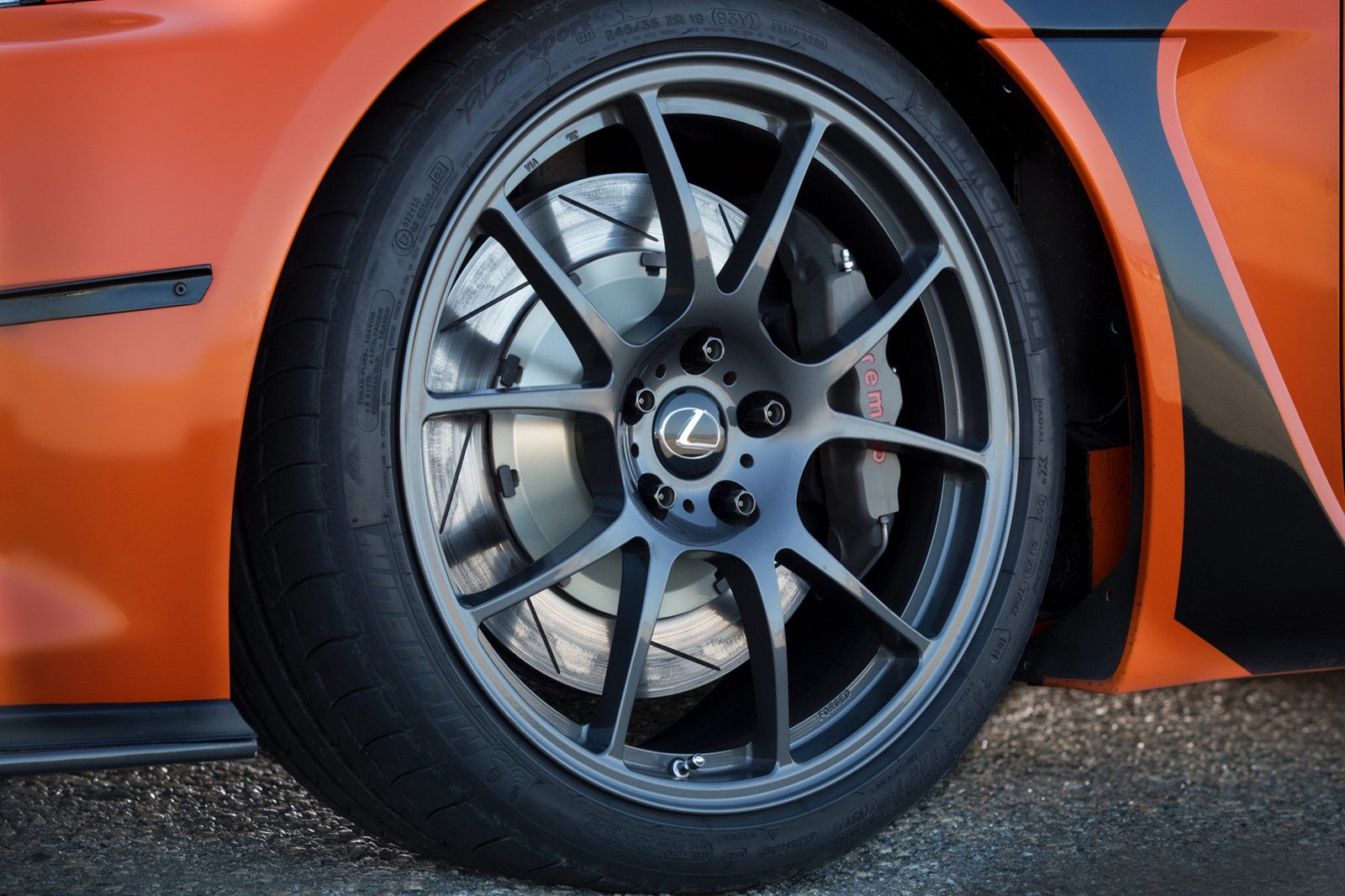

WHEELS/TYRES

• SSR
o 18×8.5J, off-set 30 front
o 18×9.5J, off-set 40 rear
• Yokohama /ADVAN NEOVA A050 tyres
o 245/40 R18 front
o 255/40 R18 rear

BRAKES

• Brake cooling system
• Racing brake kit
• Stainless steel mesh brake hose

SUSPENSION

• Adjustable camber front upper arm
• Modified race suspension
• Reinforced bushings and mounts

EXHAUST

• Racing exhaust system

OTHER MECHANICAL

• Engine oil cooler
• Transmission oil cooler
• Differential oil cooler
• Mechanical LSD

RACING EQUIPMENT

• 120-litre fuel cell
• Air jack system
• Fire extinguishing system
• Data logger
• Kill switch
• Tow strap

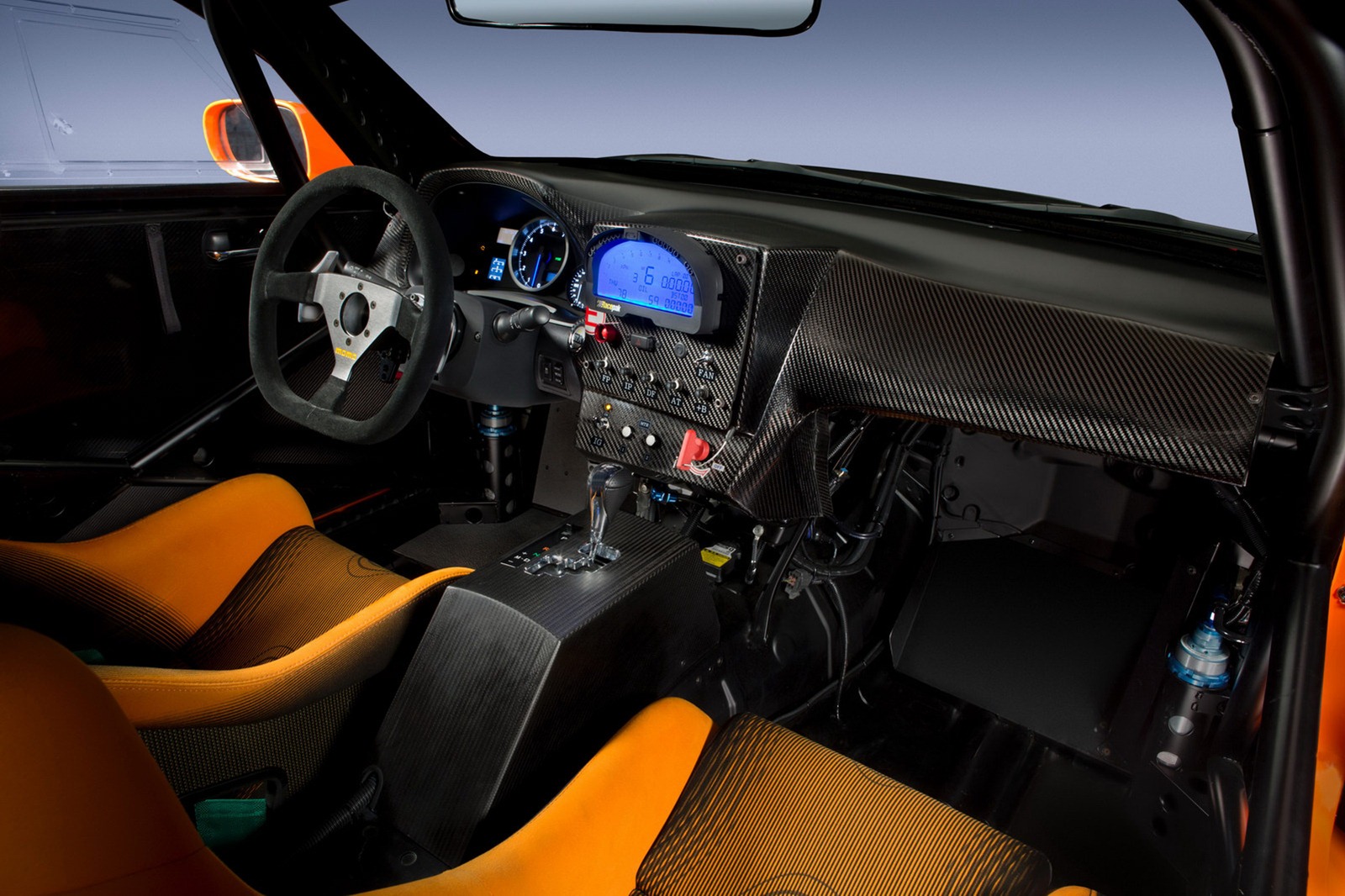

INTERIOR

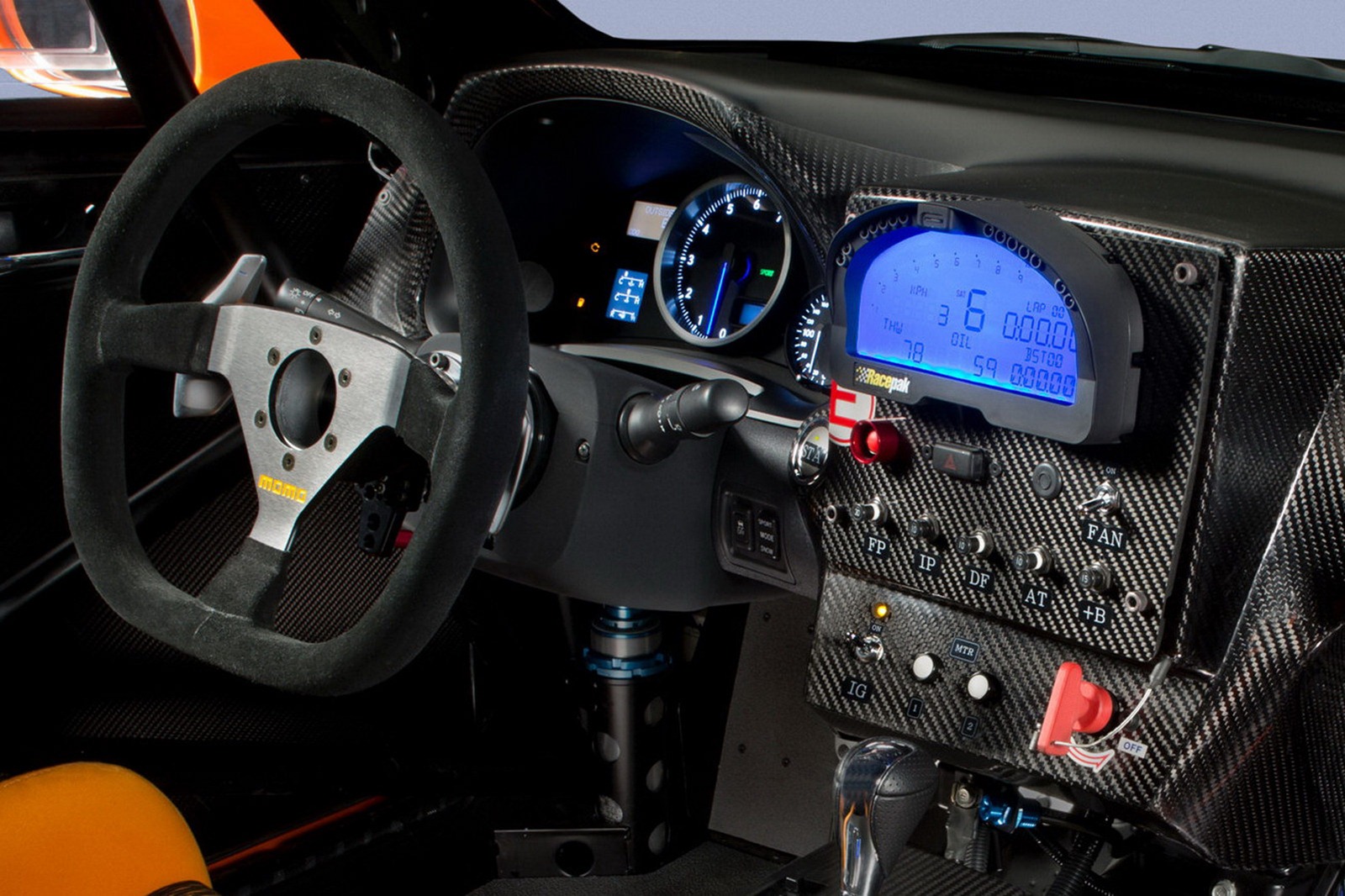

• Carbon fibre dashboard, centre console, door and interior trim

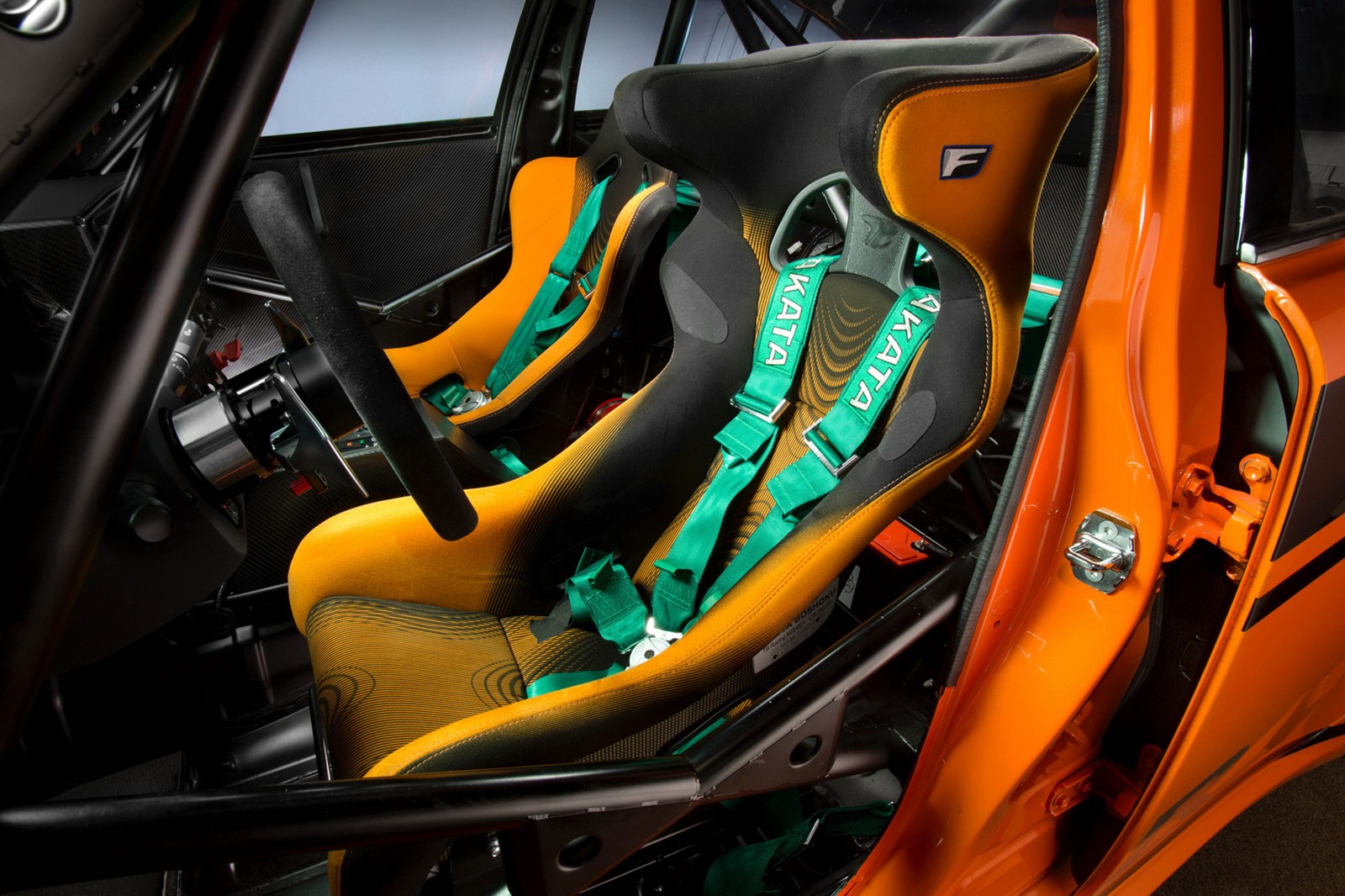

• HANS compatible full bucket driver’s seat
• Lightened interior (removed power windows, door locks, rear seats, roof lining, etc)
• Six-point seat belt
• Small-diameter steering wheel with paddle shifters
